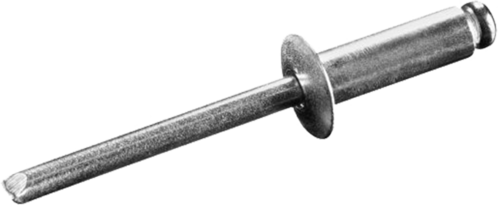

ISO 15977 FAKKT blind rivet, dome head, 4,8x30, AL/ST, CR: 20-25

Price

€29.07

per 100 piece(s)

Deliverable (3-5 months)
Article number 580000110348300
Quality AL/ST
Coating pln
Clamping range min. 20 mm
Clamping range max. 25 mm
Diameter 4,8 mm
Length 30 mm
Article variant

Your order:

Create item data sheet

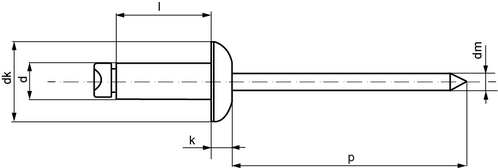

Product details

Lenght of rivet mandrel p 28  mm
Norm ISO 15977
Bore hole diameter 4,9 mm
Height of the head k 1.4  mm
Diameter of the head dk 9.5  mm
Head type dome head
Clamping range min. 20  mm
Shear force 1690  N
Diameter of rivet mandrel dm 2.63  mm
Material mandrel Steel
Lenght of rivet sleeve l 30  mm
Material sleeve Aluminium
Diameter d 4,8 mm

Remarks

Standard DIN 7337 A was withdrawn. DIN similar to DIN EN ISO 15977.
