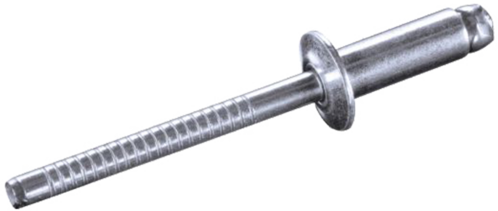

ISO 15983 FAKKT blind rivet, dome head, 4,8x16, A2/A2, CR: 9,5-11

Price

€61.64

per 100 piece(s)

In Stock
Article number 580000120048160
Quality A2/A2
Clamping range min. 9,5 mm
Clamping range max. 11 mm
Diameter 4,8 mm
Length 16 mm
Article variant

Your order:

Create item data sheet

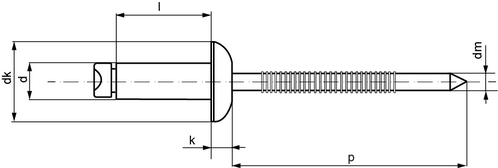

Product details

Lenght of rivet mandrel p 27  mm
Norm ISO 15983
Bore hole diameter 4,9 mm
Height of the head k 1.1  mm
Diameter of the head dk 9.5  mm
Head type dome head
Clamping range min. 9.5  mm
Shear force 4230  N
Diameter of rivet mandrel dm 2.9  mm
Material mandrel A2 stainless steel
Lenght of rivet sleeve l 16  mm
Material sleeve A2 stainless steel
Diameter d 4,8 mm
EAN/GTIN None

Remarks

Standard DIN 7337 A was withdrawn. DIN similar to DIN EN ISO 15983.
