| Price |
€3.08 per 100 piece(s) In Stock
|
|---|---|
| Article number | 2000941614 |
| Material | Steel |
| Quality | ST |
| Coating | zinc-plated, standard, 5 µm, Zn5/An/T0 |
| Diameter | 1,6 mm |
| Length | 14 mm |
Product details
Norm DIN 94 wurde zurückgezogen und ist austauschbar mit ISO 1234

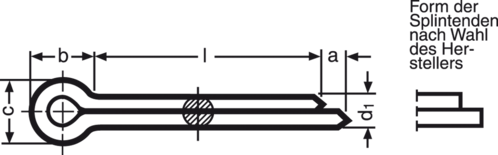

| Lenght l1 | 3.2 mm |
| Total lenght l | 14 mm |
| Norm | ISO 1234 |
| Lenght l2 | 2.5 mm |
| Diameter d | 1.6 mm |
| EAN/GTIN | None |
Remarks
The nominal Ø of the split pin is also the nominal Ø of the associated split pin hole. For split pin holes up to nominal Ø 1,2 the recommended tolerance class is H 13 and from nominal Ø 1,6 the recommended tolerance class is H 14.
Standard was withdrawn. DIN corresponds to ISO 1234.
