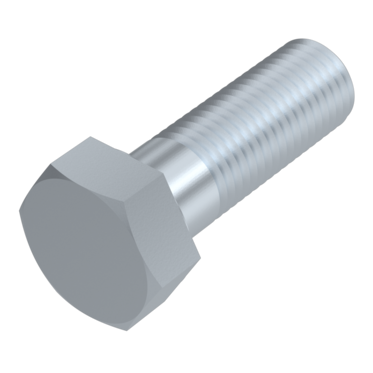

ISO 4014 / DIN 931, hexagon head bolt, M 18x180, 8.8, zinc-plated, standard, 5 µm, Zn5/An/T0

Price

€1,085.10

per 100 piece(s)

In Stock
Article number 24093118180
Diameter 18 mm
Length 180 mm
Material Steel
Quality additional filter 8.8
Coating zinc-plated, standard, 5 µm, Zn5/An/T0
Force application SW 27
Norm ISO 4014 / DIN 931
Article variant

Your order:

Create item data sheet

Product details

ISO 4014.

Total lenght l 180  mm
Norm ISO 4014
Height of the head k 11.5  mm
Thread length b 48  mm
Diameter d 18 mm
EAN/GTIN None

Remarks

Changed SW for ISO. M 10, M 12, M 14 and M 22 only available according to DIN 931. For further sizes see ISO 4014.

Application

Universell einsetzbar, vor allem im Maschinenbereich
